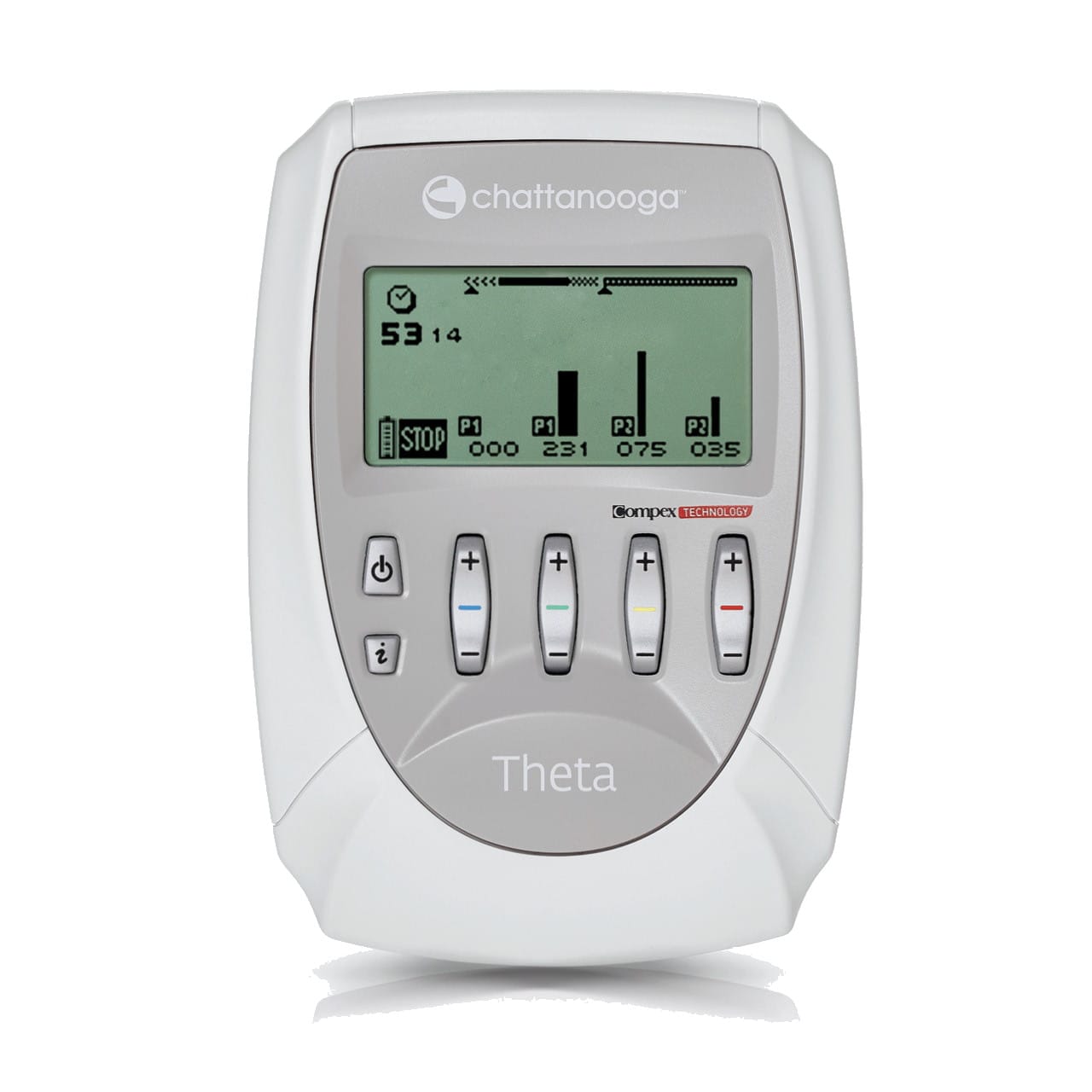

Chattanooga Compex Pro Theta

Chattanooga Compex Pro Theta

Chattanooga Compex Pro Theta is available from Medshop Australia for professional rehabilitation, orthopaedic bracing and clinical supply. Review the specifications below before ordering.

Chattanooga Compex Pro – THETA is a 4 channel stimulator developed to treat both standard (Pain, NMES) and specific protocols in Rehabilitation especially when triggered or co-contractions are requested. Neurology (Spasticity, Hemiplegic foot, Agonist-Antagonist) or specific pathologies like Post ACL Ligamentoplasty are protocols provided by the unit. Full programme configuration.

Technical Specifications:

Features

• Channels: Four independent and individually adjustable channels
• Pulse shape: Constant rectangular current with pulse compensation
• Maximum pulse intensity: 120 mA.
• Pulse intensity increments: Manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA.
• Pulse width: 30 to 400 μs.
• Maximum electrical charge per pulse: 96 micro coulombs (2 × 48 μC, compensated)
• Standard pulse ramp-up time: 3 μs (20 %-80 % of max. current)
• Pulse frequency: 1 to 150 Hz.
• Dimensions: 138 x 95 x 33mm
• Weight: 300g incl. battery
• Warranty is 3 years from date of purchase.

Specifications

• Brand: Chattanooga
• SKU: ITM67342
• Category: TENs/NMES

Benefits

Chattanooga Compex Pro Theta supports protocol-driven rehabilitation and clinical supply where the stated Chattanooga specifications must match the workplace or care setting. Medshop Australia supplies this item for professional use.

Manufacturer

Produced by Chattanooga. Choose based on size, laterality, colour or stated specification to match your clinical or workplace requirements.

This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
