Chattanooga Wireless Professional 4CH

Chattanooga Wireless Professional 4CH

The benefits of wireless freedom and Trigger function provides the ability to manage new kinds of sessions.

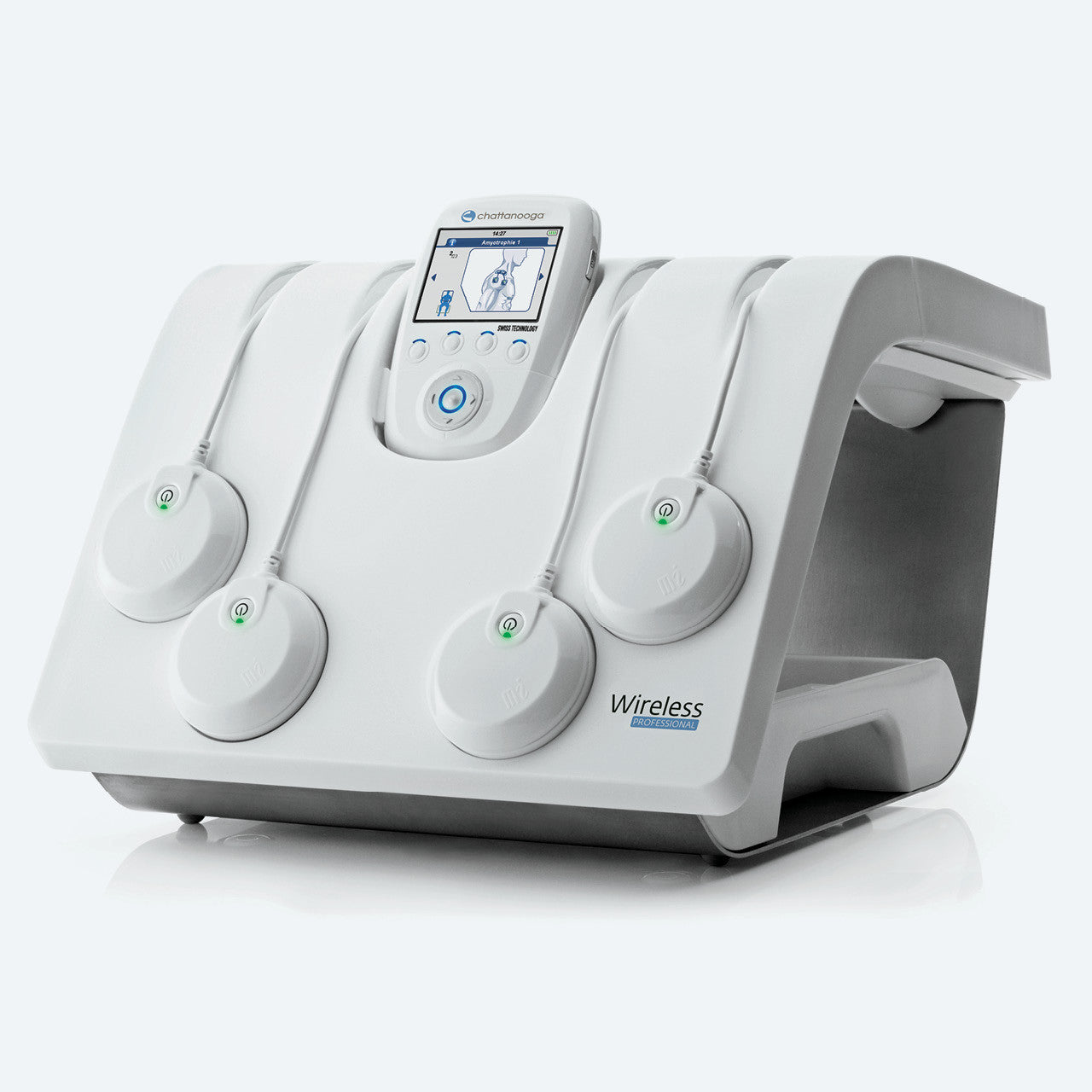

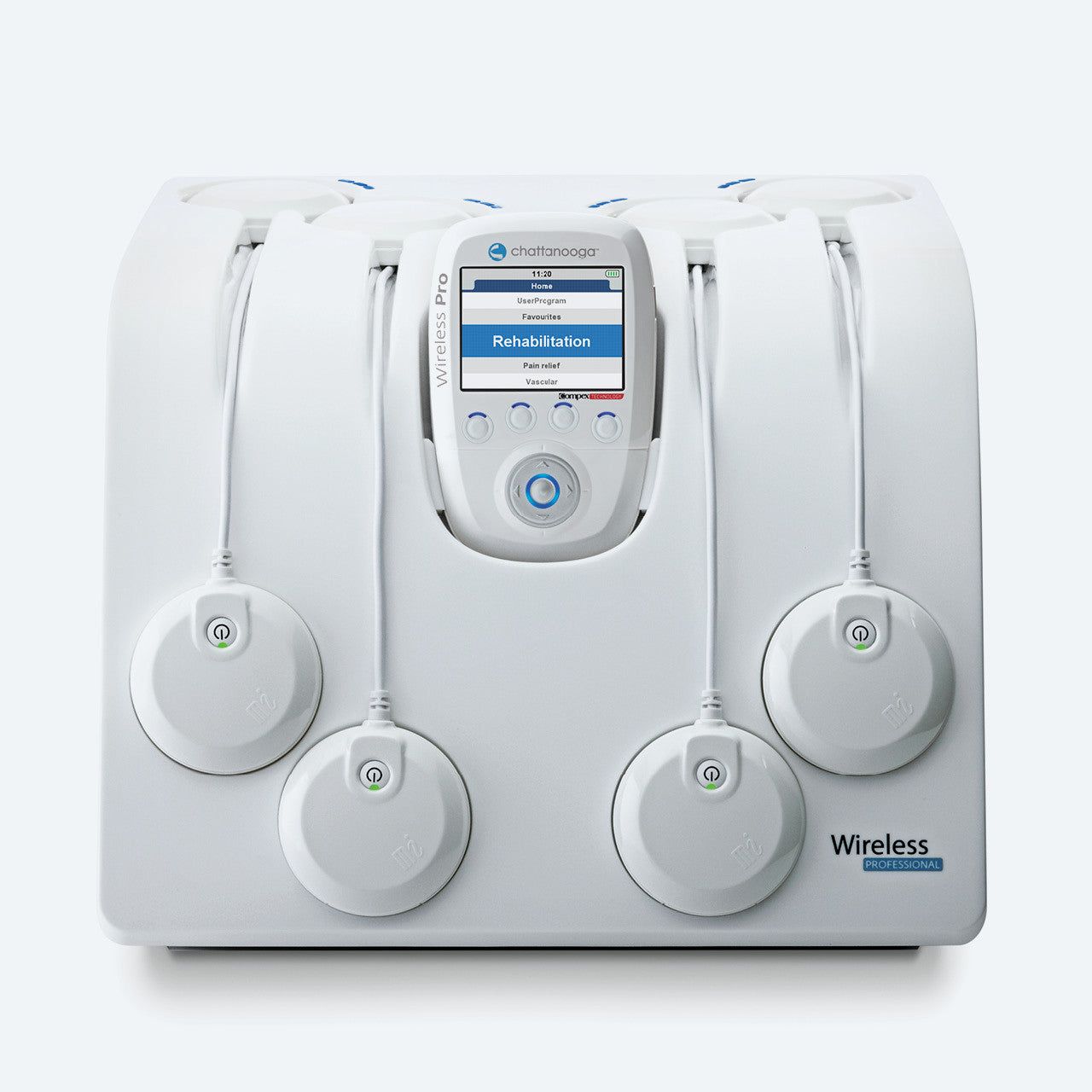

Chattanooga WIRELESS 4CH FULL is a 4 channel stimulator developed to manage the main indications of Electrotherapy: Standard (TENS/NMES) and Full (Neurology, ACL). The benefits of wireless freedom and Trigger function provides the ability to manage new kinds of sessions where voluntary contractions are required or when the Physiotherapist wants to control stimulation manually. Delivered with 2 remotes and a Smart Docking Station to manage several sessions simultaneously (Multi-Sessions). Full programme configuration – 4 CH – Multi- Sessions.

Key features

• Channels: Four independent and individually adjustable channels
• Pulse shape: Constant rectangular current with pulse compensation
• Maximum pulse intensity: 120 mA
• Pulse intensity increments: Manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA
• Pulse width: 30 to 400 μs
• Maximum electrical charge per pulse: 96 micro coulombs (2 × 48 μC, compensated)
• Standard pulse ramp-up time: 3 μs (20 %-80 % of max. current)
• Pulse frequency: 1 to 150 Hz

Specifications

• Brand: Chattanooga
• SKU: ITM67302
• Category: Muscle Stim

Manufacturer

Produced by Chattanooga.

This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
