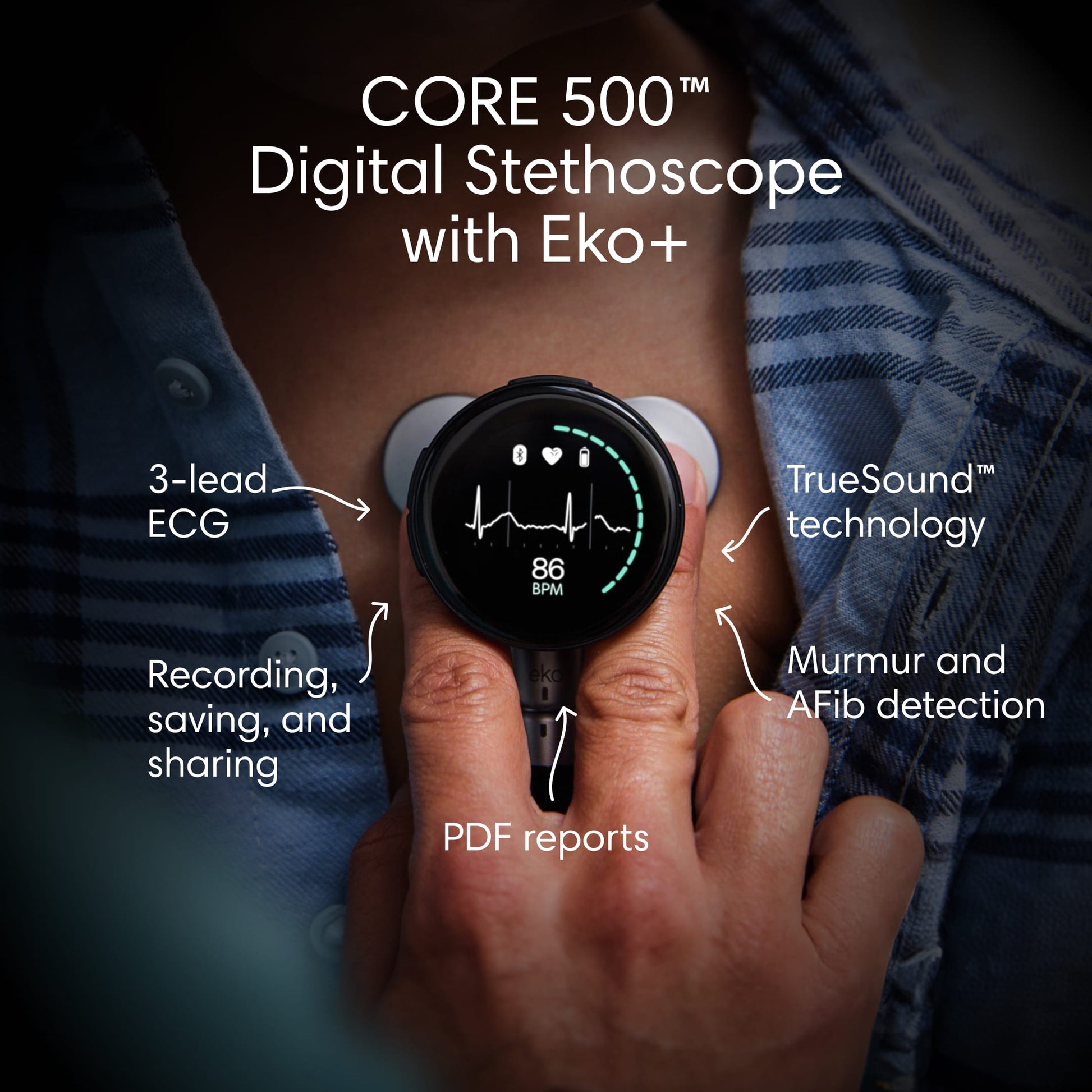

The CORE 500™ improves diagnostic confidence with unmatched audio quality and 3-lead ECG data. As an Eko+ member, you can easily record, share, and analyze body sounds for faster, more accurate care.
Hear with precision, even in noisy environments:TrueSound™ technology unlocks active noise cancellation and up to 40x sound amplification, allowing you to hear body sounds more clearly for confident diagnoses.

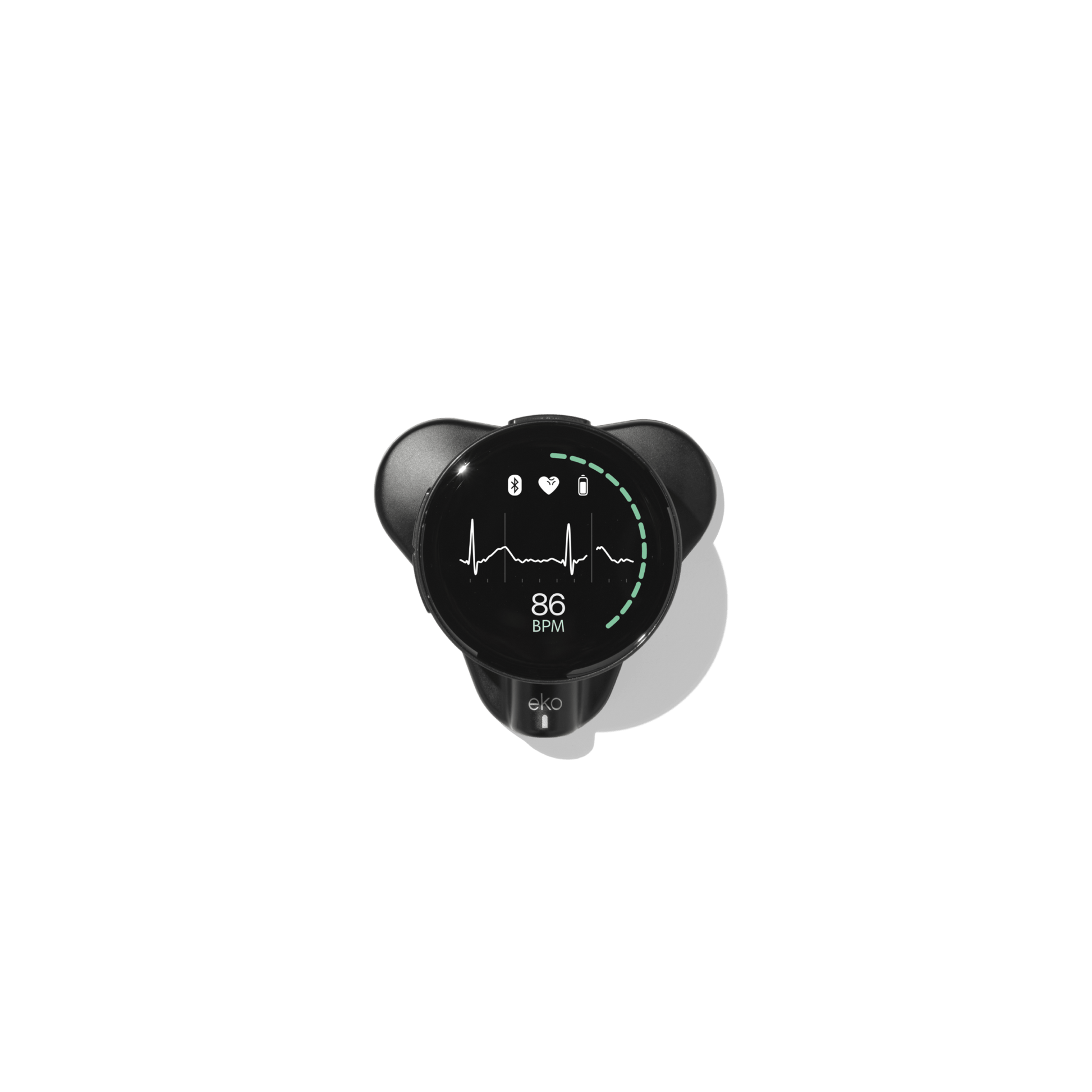

See insights in seconds:The full-color display shows 1-lead ECG, exam details, and device settings directly on the stethoscope, streamlining your workflow and providing essential data right at your fingertips.
Expand your cardiac assessments:The integrated 3-lead ECG offers a more comprehensive view of your patient’s heart, improving diagnostic accuracy.
Detect disease earlier:Unlock structural murmur and AFib detection powered by Eko AI, along with sound recording, sharing, and more, with an Eko+ membership for earlier diagnoses and seamless collaboration.
Designed to last: The CORE 500™ is scratch and splash proof, with a battery life of up to 60 hours, ensuring it stays powered through even the longest shifts.

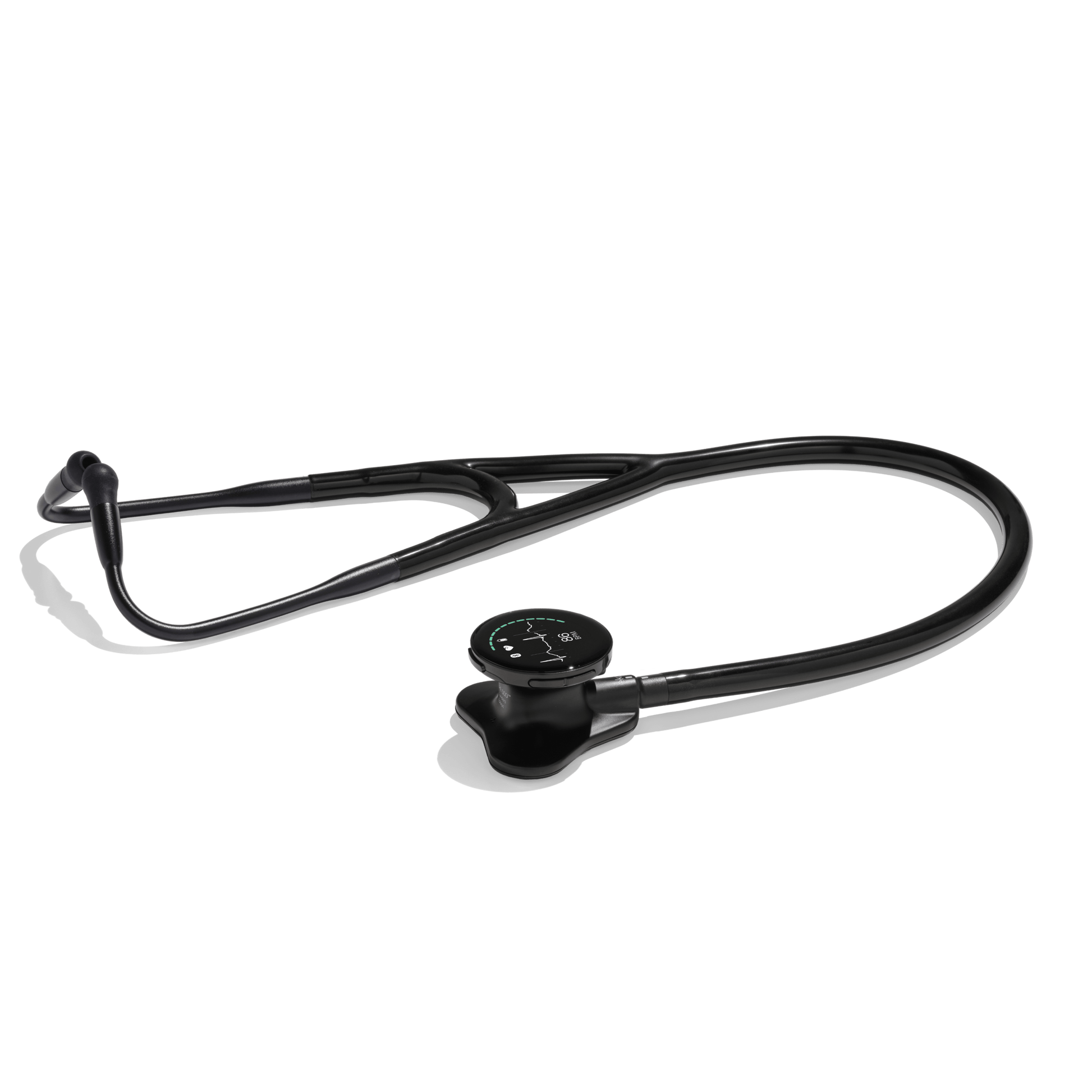

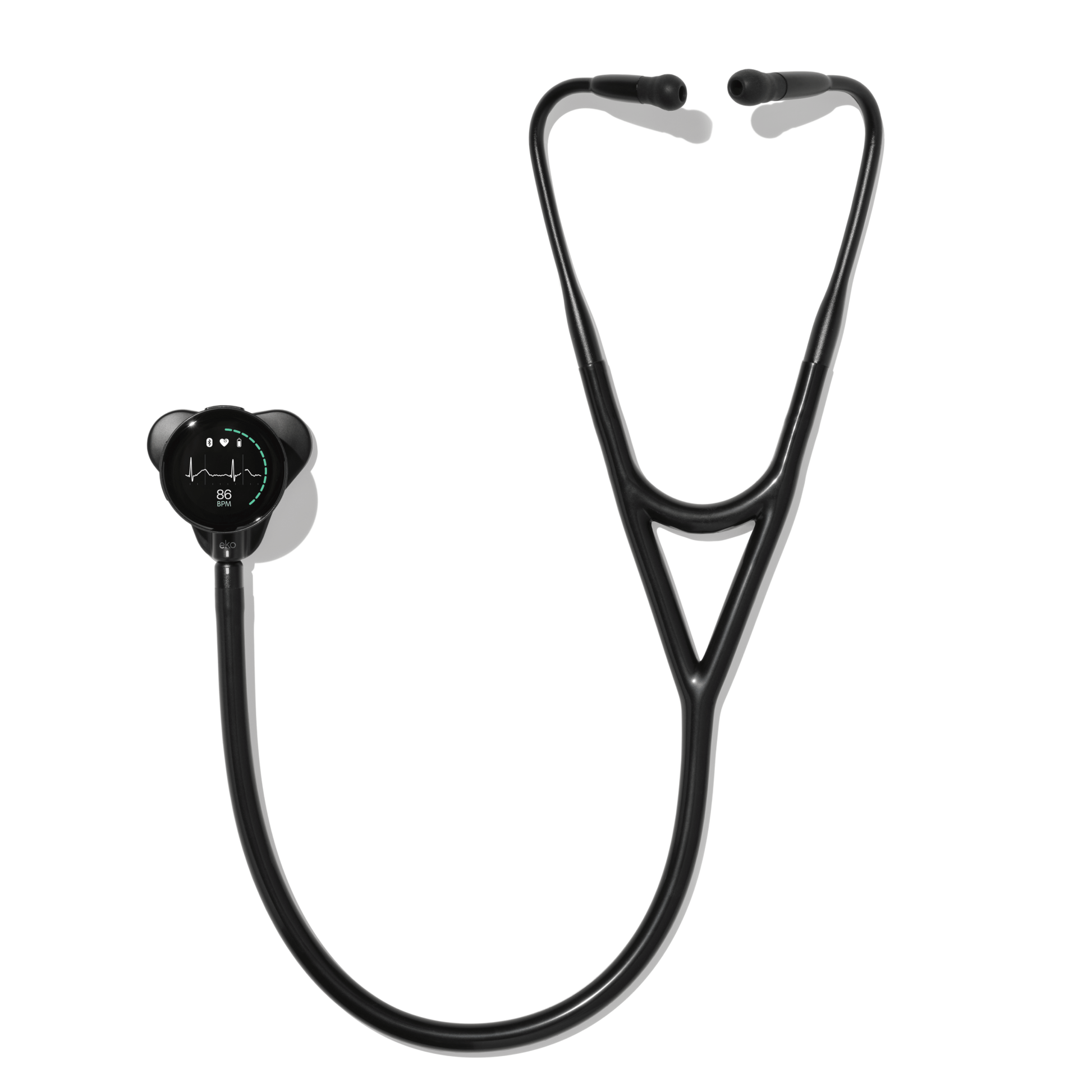

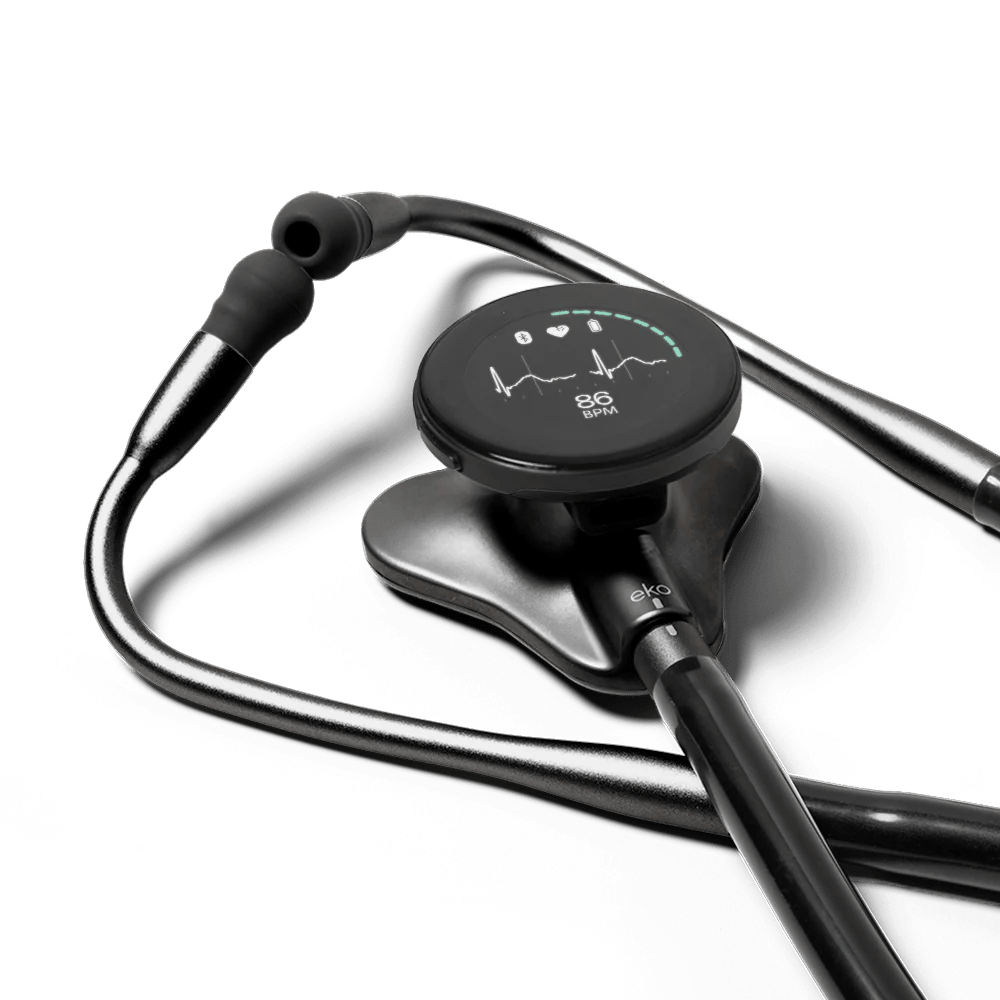

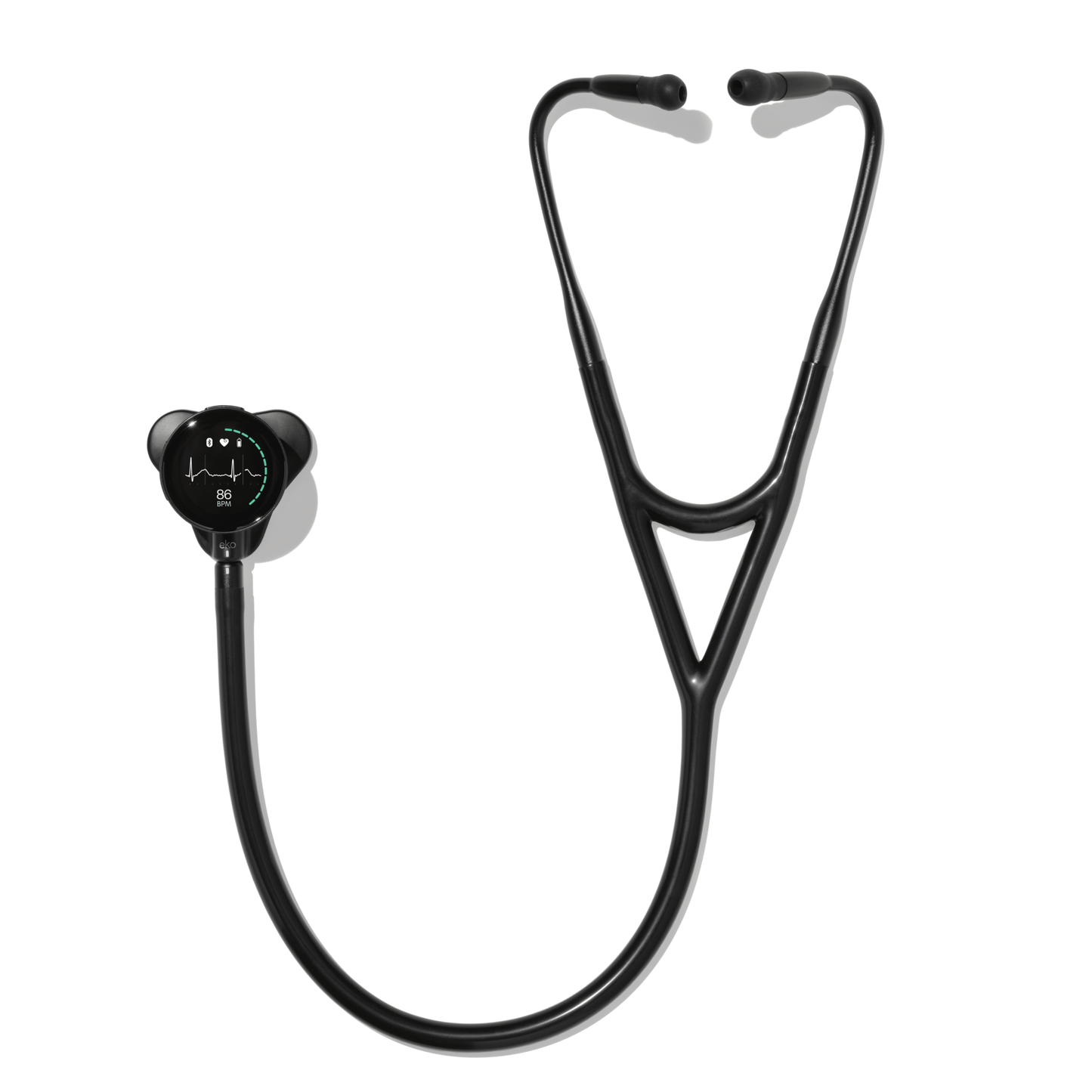

The CORE 500™ is the modern stethoscope replacement, combining 3-lead ECG, unmatched audio clarity, and waveform visualizations, with available Eko+ connectivity for AI insights, exam recording, and sharing.
When paired with Eko’s latest AI model¹, clinicians can identify structural murmurs associated with heart disease while reducing unnecessary follow-ups driven by innocent murmurs.
Experience 8x sound improvement² and detect heart disease at double the rate³ compared to a traditional stethoscope.
Features
TrueSound™ technology with in-ear speakers
Full-color LCD display
3-lead ECG with frequency response range from 0.1-250 Hz
Up to 40x amplification
Active noise cancellation
Bluetooth wireless listening option
Power
Auto power off
USB-C charging port
Rechargeable lithium-ion battery that lasts up to 300 minutes of continuous use; generally lasts up to 60 hours of regular clinical use
Connection & Storage
Bluetooth 4.2 low-energy
Patient report in .PDF file format
Dimensions & Weight
27 in (69 cm) L from ear tip to chestpiece
6.6 oz (186 gm)
Chestpiece weight: 3.1 oz (88 gm)
Diaphragm diameter: 1.2 in (3.0 cm)
Construction & Materials
Binaural: TRS jack connector, vinyl tube, and sealed speaker

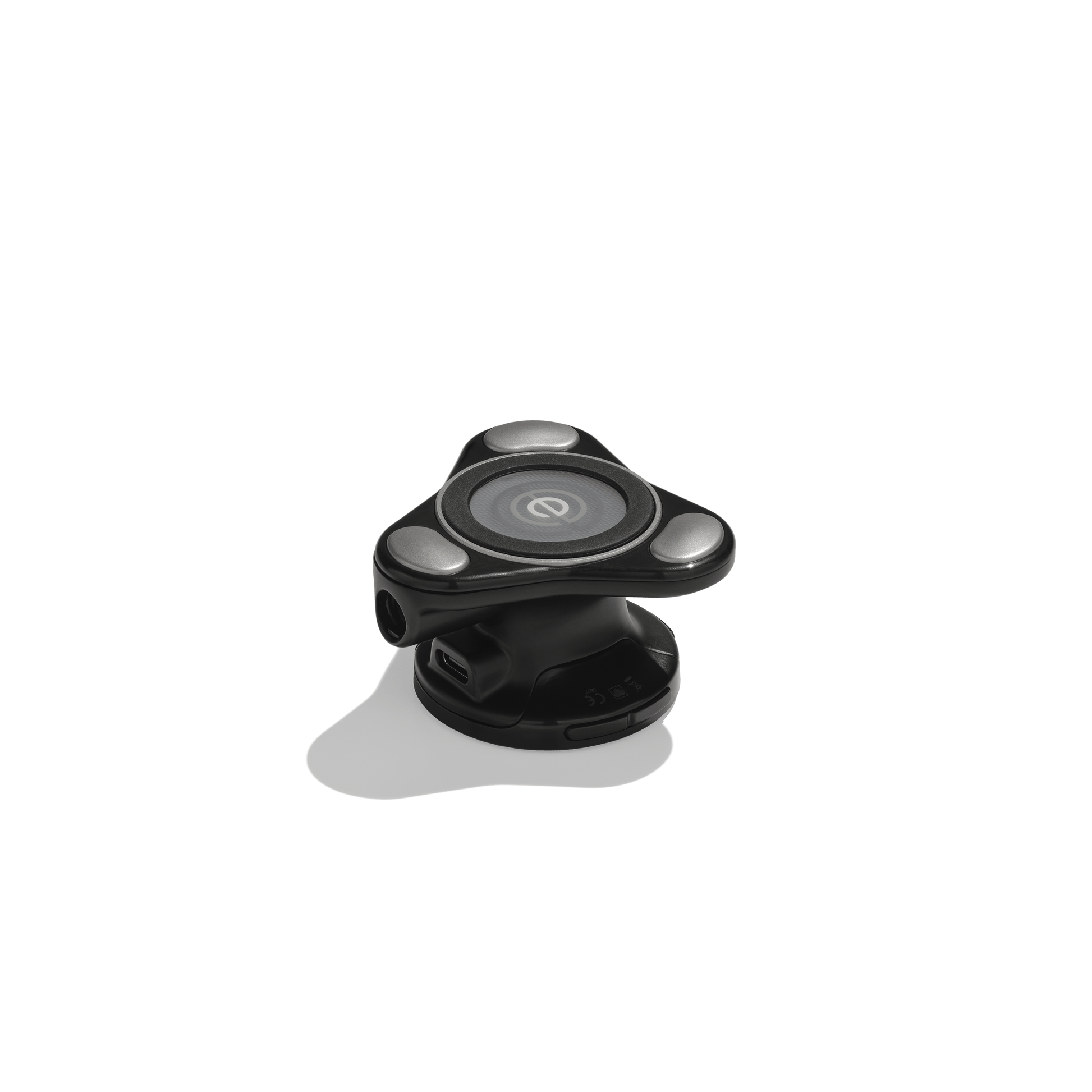

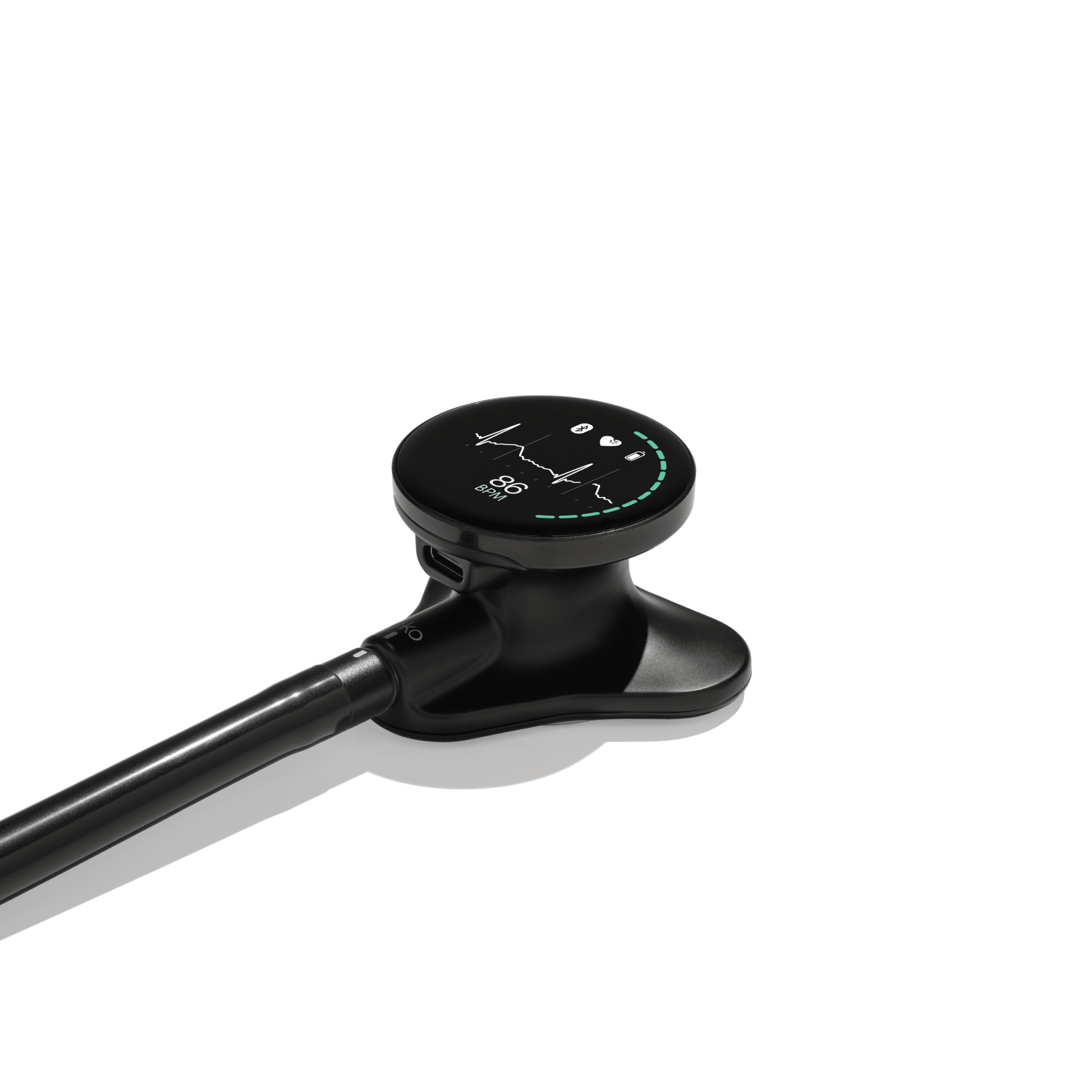

Chestpiece technology: Single-sided with 3 equally spaced, custom-sized electrodes
Diaphragm material: Silicone
Diaphragm shape: Round
Diaphragm type: Tunable, single-piece
Headset material: Anodized aluminum
Ear tips material: Silicon
IP44 water rating
Does not contain natural rubber latex or phthalate plasticizers

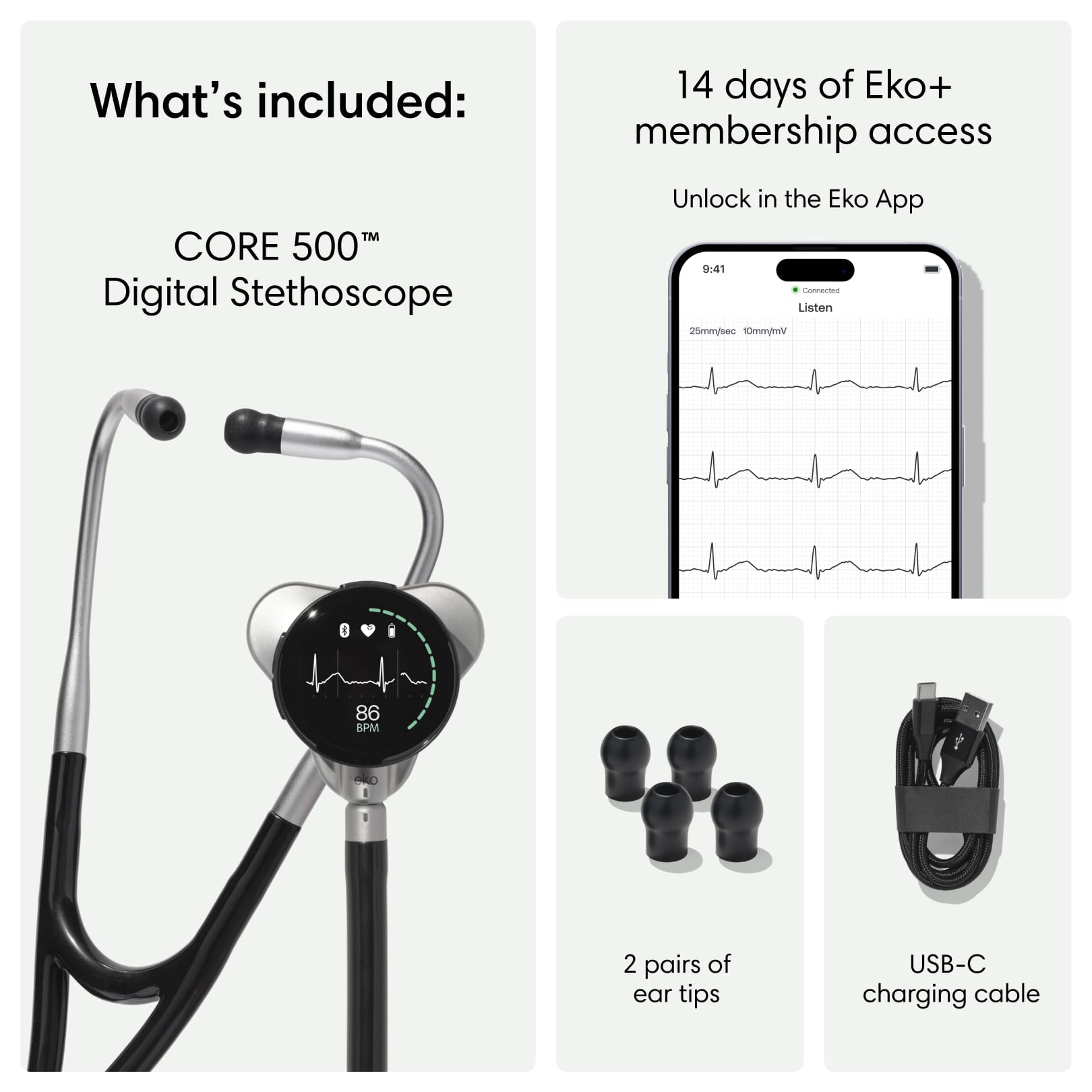

Eko CORE 500™ Digital Stethoscope with removable earpiece
Eko+ membership 14-day free trial
Access to the Eko App’s standard features, including wireless listening, real-time visualization, and single recording and playback
